Insulators for low and medium voltage systems
Supporting insulators and bushings up to 45 kV
Supporting insulators and bushings up to 45 kV
Insulators for low and medium-voltage systems
Our insulators made of epoxy resin are the ideal choice for medium-voltage systems. Epoxy resin offers excellent electrical insulation properties and is extremely resistant to environmental stresses such as moisture, dirt and UV radiation. These insulators impress with their outstanding insulating properties, high mechanical strength and long service life.
For lowvoltagesystems, we offer insulators made of glass fiberreinforced plastic (GRP). These are lightweight, robust and offer high electrical and mechanical strength.
At LUKA, we place the highest value on quality and reliability. Our insulators undergo rigorous testing and meet international standards for safety and performance. By using the latest technologies and materials, we ensure that our products meet the highest requirements.
Filter Low and medium voltage insulators
GDD 36/55
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 350 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 24/95
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 250 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 12/145
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 140 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GBD 24/400 M16
Cast resin bolt bushing
Bolt bushing for outdoor/indoor systems
| Creepage distance in mm: | 815 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor/outdoor facility |
GOD 12/115.4
Cast resin O-ring feedthrough
Clampable feedthrough for indoor systems
| Creepage distance in mm: | 120 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 12/75
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 140 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
A12N-1-M10+M16-R8
Cast resin interior support 12 kV
Support insulator made of epoxy cast resin for indoor systems
| Height in mm: | 130 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
A24N-1-M12+M16-R8
Cast resin interior support 24 kV
Support insulator made of epoxy cast resin for indoor systems
| Height in mm: | 210 |
| Diameter in mm: | 70 |
| Bending strength in kN: | 5 |
A36N-1-M10+M16-R8
Cast resin interior support 36 kV
Support insulator made of epoxy cast resin for indoor systems
| Height in mm: | 300 |
| Diameter in mm: | 80 |
| Bending strength in kN: | 5 |
18/15-M4 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 1 |
| Height in mm: | 18 |
20/20-M5 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 1.3 |
| Height in mm: | 20 |

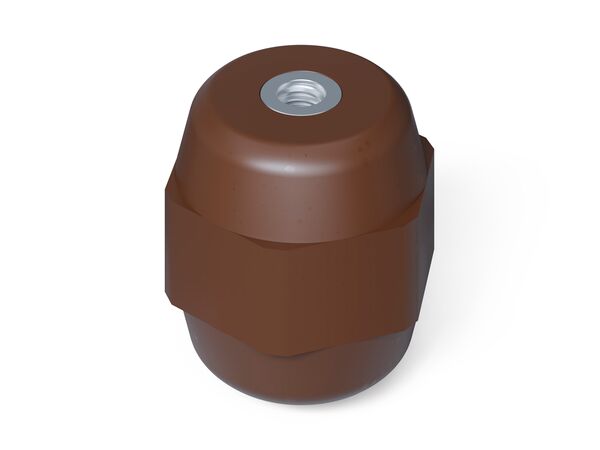

25/25-M5 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 1.5 |
| Height in mm: | 25 |

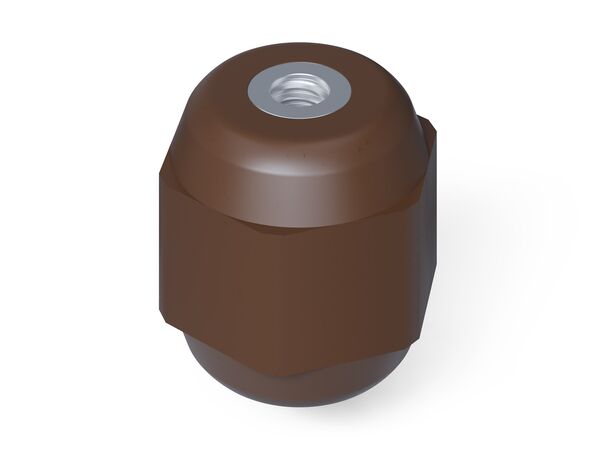

25/25-M6 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 1.5 |
| Height in mm: | 25 |

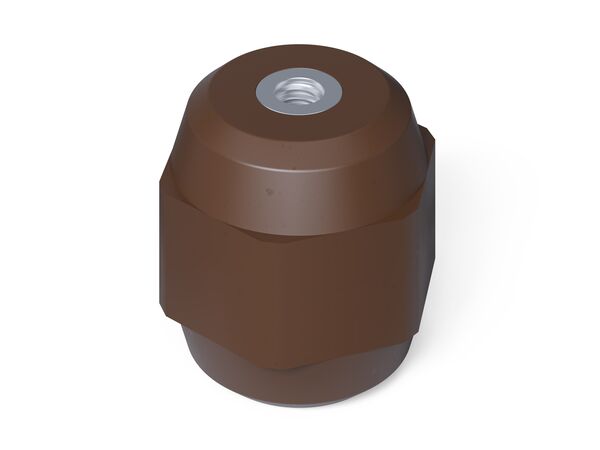

30/30-M6 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 2.5 |
| Height in mm: | 30 |

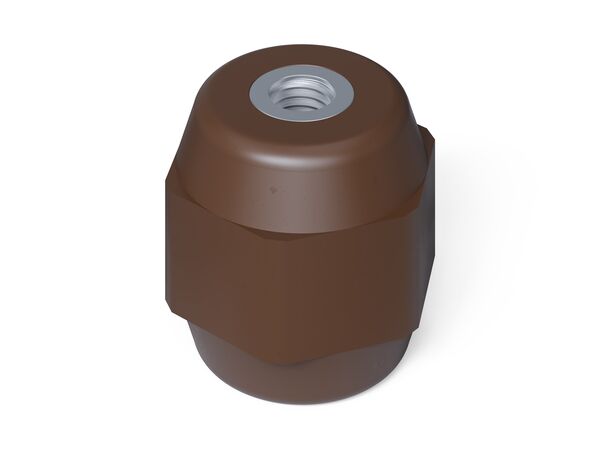

30/30-M8 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 3 |
| Height in mm: | 30 |
35/30-M6 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 2 |
| Height in mm: | 35 |
35/30-M8 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 3.5 |
| Height in mm: | 35 |
35/30-M10 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 4 |
| Height in mm: | 35 |
35/40-M8 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 4 |
| Height in mm: | 35 |
35/40-M10 UP
GRP support polyester 1 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 1 |
| Breaking strength in kN: | 4.5 |
| Height in mm: | 35 |

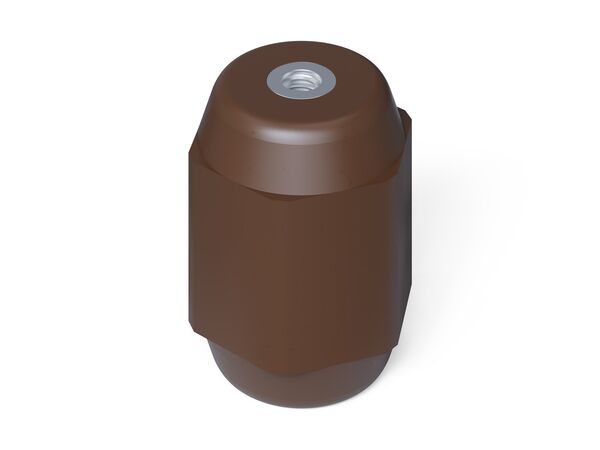

40/30-M6 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 1.5 |
| Height in mm: | 40 |

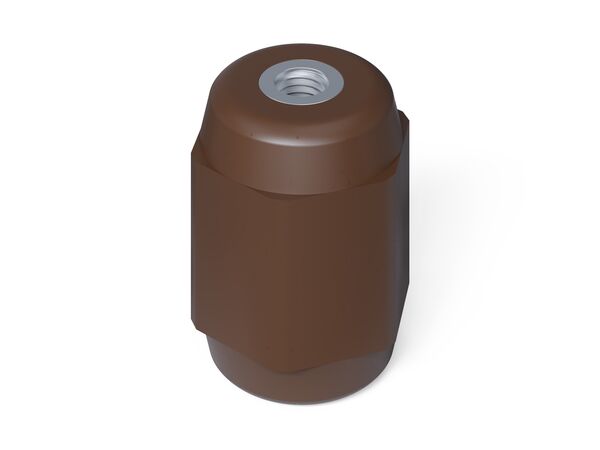

40/30-M8UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 3 |
| Height in mm: | 40 |
40/40-M8 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 5 |
| Height in mm: | 40 |
