40/40-M10 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 8 |
| Height in mm: | 40 |
Company holidays: We will be on company holidays from 23 December 2024 up to and including 5 January 2025. We will not be available by phone or email during this period. We will be available again as usual from 6 January 2025.
We thank you for your understanding and wish you a Merry Christmas and a Happy New Year!
Insulators for low and medium voltage systems
Supporting insulators and bushings up to 45 kV
Supporting insulators and bushings up to 45 kV
Insulators for low and medium-voltage systems
Our insulators made of epoxy resin are the ideal choice for medium-voltage systems. Epoxy resin offers excellent electrical insulation properties and is extremely resistant to environmental stresses such as moisture, dirt and UV radiation. These insulators impress with their outstanding insulating properties, high mechanical strength and long service life.
For lowvoltagesystems, we offer insulators made of glass fiberreinforced plastic (GRP). These are lightweight, robust and offer high electrical and mechanical strength.
At LUKA, we place the highest value on quality and reliability. Our insulators undergo rigorous testing and meet international standards for safety and performance. By using the latest technologies and materials, we ensure that our products meet the highest requirements.
Filter Low and medium voltage insulators
40/40-M12 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 9 |
| Height in mm: | 40 |
40/50-M10 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 12.5 |
| Height in mm: | 40 |
40/50-M12 UP
GRP support polyester 2 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 2 |
| Breaking strength in kN: | 12.5 |
| Height in mm: | 40 |
50/40-M8UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 5 |
| Height in mm: | 50 |

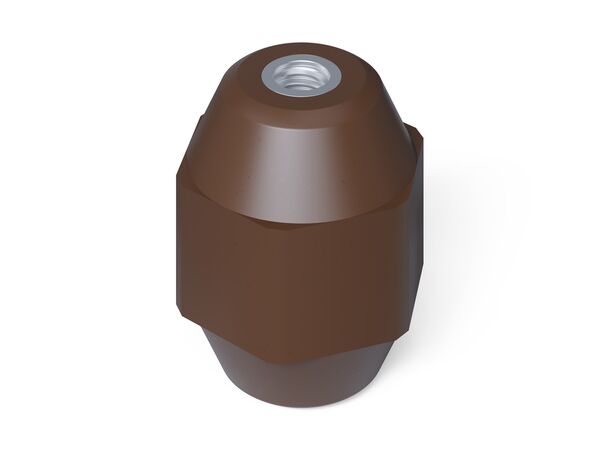

50/40-M10 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 5 |
| Height in mm: | 50 |

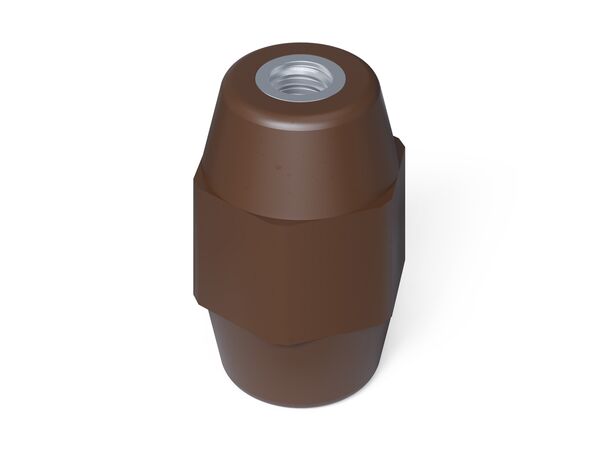

50/40-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 6 |
| Height in mm: | 50 |

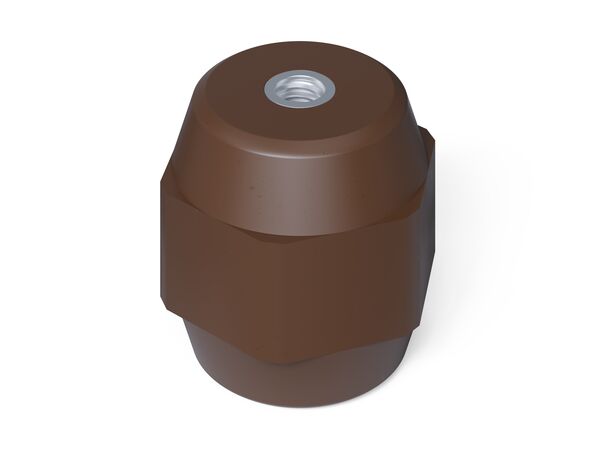

50/50-M10 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 10 |
| Height in mm: | 50 |

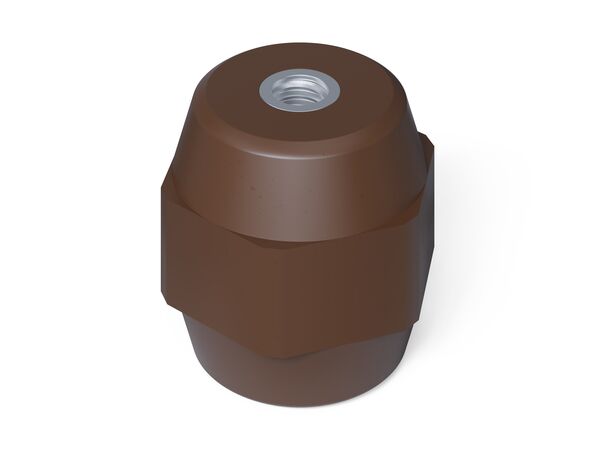

50/50-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 10 |
| Height in mm: | 50 |
60/40-M8 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 4 |
| Height in mm: | 60 |

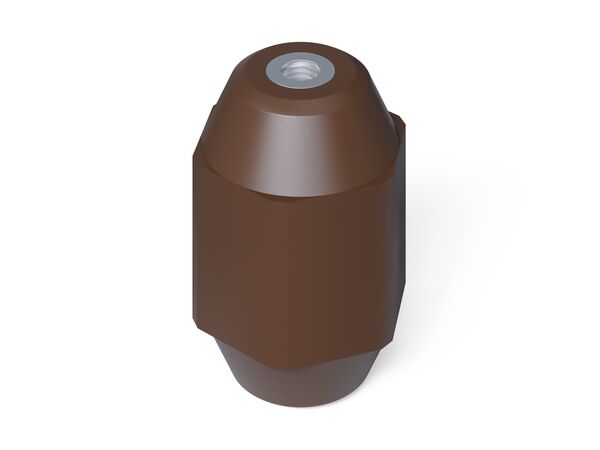

60/40-M10 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 6 |
| Height in mm: | 60 |

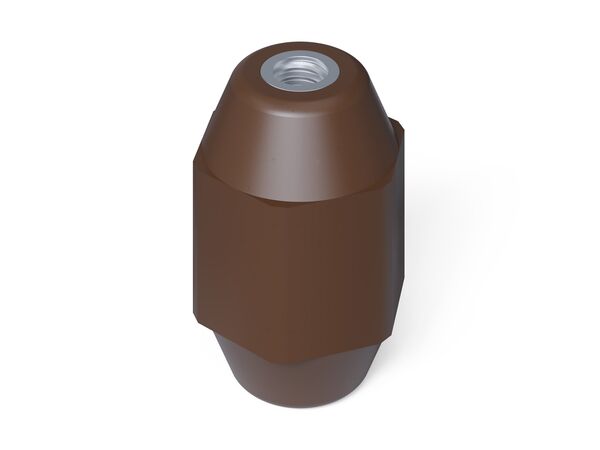

60/40-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 6 |
| Height in mm: | 60 |
60/50-M10 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 9 |
| Height in mm: | 60 |

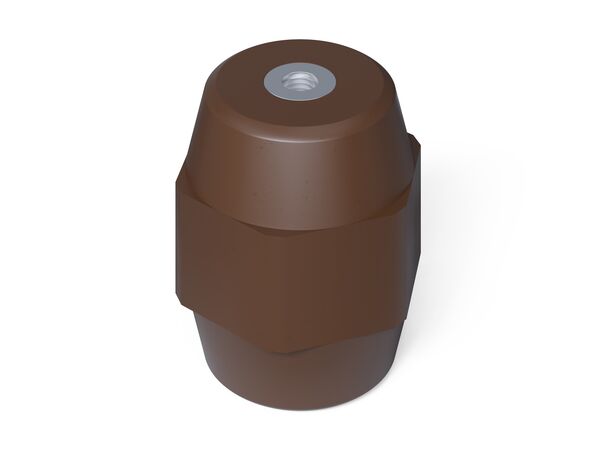

60/50-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 11 |
| Height in mm: | 60 |

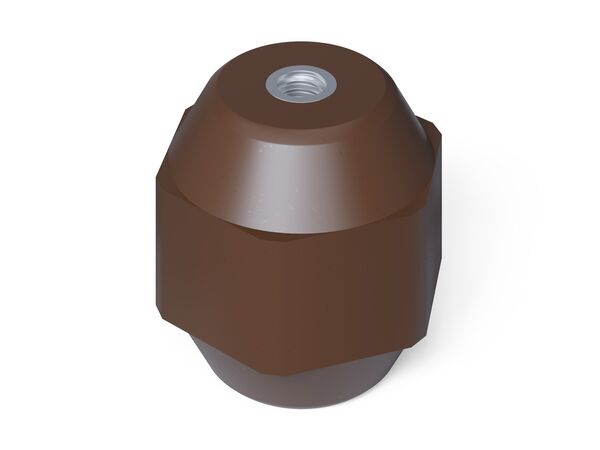

60/60-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 12 |
| Height in mm: | 60 |

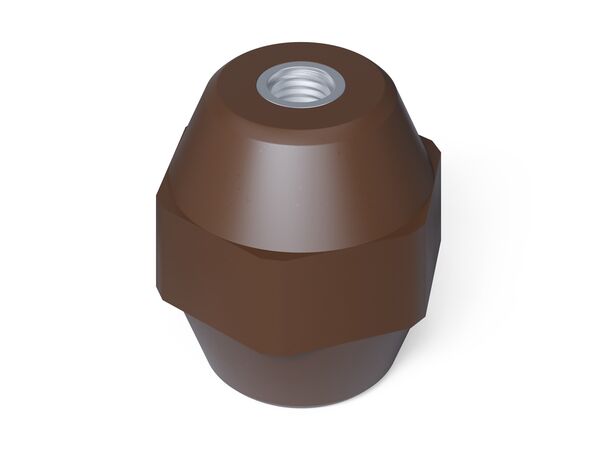

60/60-M16 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 15 |
| Height in mm: | 60 |
60/60-M20 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 16 |
| Height in mm: | 60 |
80/60-M10 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 11 |
| Height in mm: | 80 |

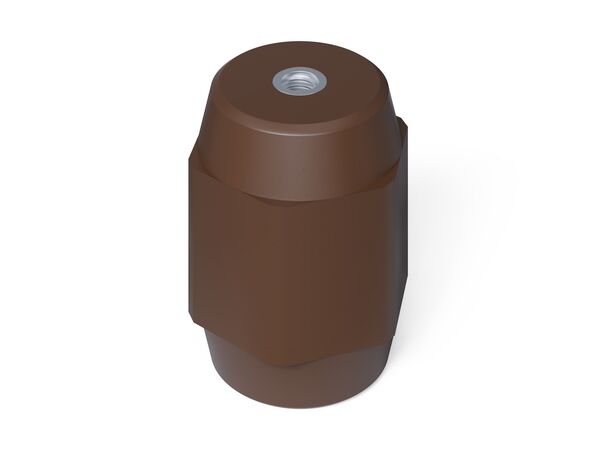

80/60-M12 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 15 |
| Height in mm: | 80 |
80/60-M16 UP
GRP support polyester 3 kV
Low voltage support insulator made of glass fiber reinforced polyester resin
| AC operating voltage in kV: | 3 |
| Breaking strength in kN: | 15 |
| Height in mm: | 80 |
